Product Specification
Note
- The display SPEC. are adjusted according to the selected LCD screen and touch screen.
- The support system is adjusted according to the specific system and version.
Complete Machine
| Model No. | 15.6 inch PCAP Touch Monitor |
|---|---|
| Touch Technology & Capacity | PCAP (Projected Capacitive) - 10 Touch |
| Diagonal Size | 15.6'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area (mm) | 344.23mm x 193.54mm |
| Best Resolution | 1920 × 1080 @ 60 Hz |
| Brightness | Pure LCD Panel: 250 cd/m2/225 cd/m2 (with Touch screen) |
| Viewing Angle | Horizontal: 170° (85°/85°) | Vertical: 170° (85°/85°) |
| Number of Colors | 16.7 million |
| Response Time-total | 30ms |
| Contrast Ratio | 700:1 (standard Values) |
| Video Interface | VGA/HDMI |
| Input Video Frequency | Horizontal: 30~80 Hz Vertical: 60~75 Hz |
| Power | Input: DC 12V±5% |
| Power Consumption | Max:20w; Sleep:2w; Off:1w |
| Weight (N.W/G.W) | 6.4kg/8.8kg (1pcs/2pcs ） |
| Operating Temperature/Storage Temperature | 0℃-50℃ / -20℃-60℃ |
| Operating Humidity/ Storage Humidity | 20%-80%;/10%-90% |
| Agency Approvals | CE, ROHS，BIS |
| Mounting Options | 1.VESA 75mm and 100mm | 2.Mount bracket |
| Warranty | 1 year |
Touch Screen
| Touch Type | Projected Capacitive Touch Screen |
|---|---|
| Touch Input | USB |
| Response Time | ≤10 |
| Hardness | 7H |
| Transparency | ≥87% |
| Thickness | 3mm |
| Touch Lifespan | ≥50,000,000 times |
| Power | Input: DC 5V±5% |

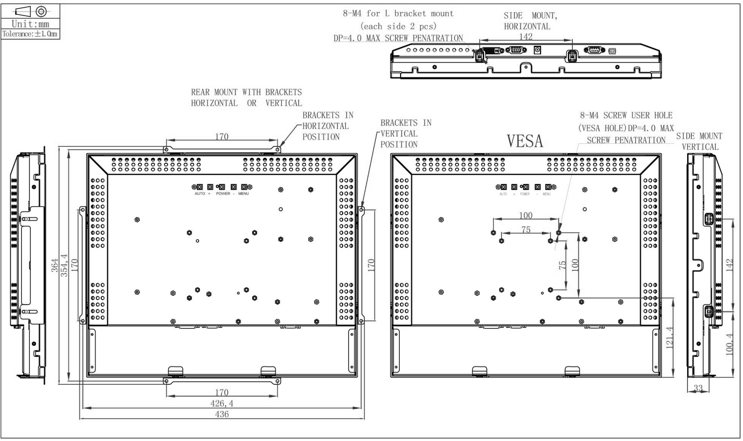

Product Dimensions
